Monitorrs Security 6142

   Ešte pohodlnejšie monitorovanie Wifi kamerový systém Monitorrs Security s rozlíšením 2Mpix (1080p FullHD) posúva kvalitu obrazu na novú úroveň

Dosah Wifi signálu je 300m vo voľnom priestore. Prekážky tento dosah skracujú, ale ostane vždy dostatočná sila aby signál pokryl bežný rodinný dom.     Kamery sú v kovovom, vodotesnom (IP 66) antivandal puzdre s nočným prísvitom až do 20m  Možnosť sledovania na telefóne, tablete alebo počítača s celého sveta úplne zdarma

V cene setu je kvalitný pevný disk s kapacitou 1TB čo pri tomto sete postačuje až na 12 dní záznamu pri kódovaní H.265 (Veľkosť disku si môžete zmeniť vyššie)

Pre jednoduchšiu inštaláciu našich kamerových systémov sme pre vás pripravili video návody.

Pre naše sety nie je potrebná žiadna ďalšia investícia a zapojenie zvládne aj laik

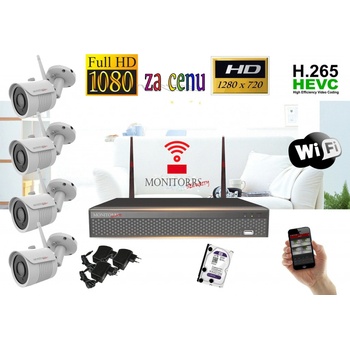

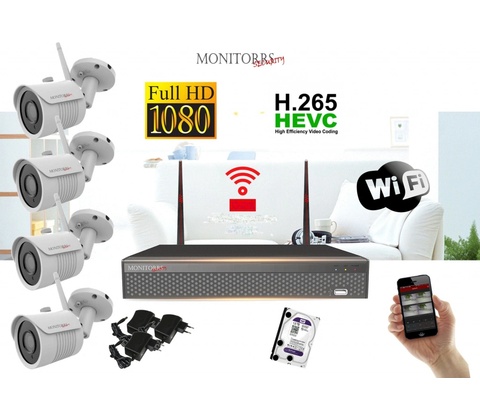

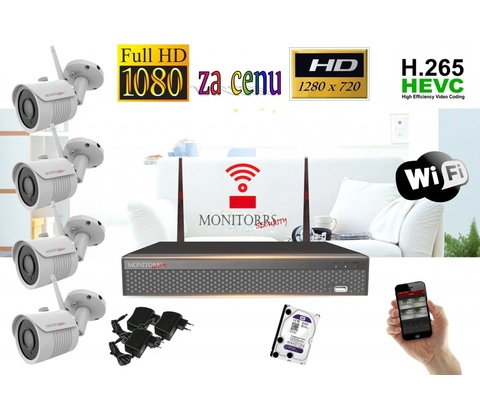

Obsah balenia:   1 x 4 kanálový WiFi NVR rekordér NVR H.265 4 x WiFi IP kamery 2Mpix FullHD 4 x Adaptér DC12V/0.5A pre WiFi IP kamery 1 x Adaptér DC12V/2A pre WiFi NVR rekordér 1 x USB 2.0 myš 1 x Uživateľský manuál

K tomuto videu si prosím zapnite aj titulky

Videonávod pre aplikáciu do mobilu a tabletu (video obsahuje titulky)

Package

NVR 1x NVR3604

Camera 4 x 30SF200

WIFI Range

No Obstacles 300m Max

Hard Disk 1x1TB WD Hard Disk ST1000VX005

Mouse 1xUSB 2.0 Mouse

Adaptor 1xDC 12V 2A for WIFI NVR, 2xDC 12V 0.5A for WIFI IP Camera

Weight 4.6kg/SET

Camera Model

LBH30SF200W

Camera

Image Sensor 1/3" SONY Low Illumination  CMOS Sensor

Resolution 2MP 1080P

Effective Pixels 1920(H)*1080(V)

Compression

H.264/H.264+/H.265/H.265+/JPEG/AVI /MJPEG

TV System

PAL/NTSC

Electronic Shutter Time

Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec

S/N Ratio ≥52dB

Scanning System

Progressive

Video Output

Network

Reset Button

Optional

LENS Type

Focus Length 3.6mm

Focus Control

Fixed

Lens Type

Fixed

Pixels 3M Pixels

Night Vision

Infrared LED 18µ x 20PCS

Infrared Distance 25M

IR Status

Auto Control

IR Power On

Auto Control

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP

ONVIF

Support ONVIF 2.4

P2P

YES, Support QR Code

POE /

Video Delay 0.3S (Within the Lan)

Main Stream 1

• 1920*1080@1-15fps(default resolution:1920*1080/frame
• rate:15fps/bit rate:2Mbps)

Main Stream 2 1280*720@20fps

Main Stream 3 /

Sub Stream 1 720*480@1-15fps(default frame rate:15fps/bit rate:0.5Mbps)

Sub Stream 2 /

Sub Stream 3 /

Tri Stream 354*288@(1-15)fps(default frame rate:15fps)

IE Brower

IE8-11, Google Chrome(under version 45), Firefox(under version 53),

Mac Safari

Smart Phone iPhone, iPad, Android, Android Pad

Wireless

Antena 3dbi

Hotspot

NO

Wi-Fi

Wi-Fi(IEEE802.11b/g/n)

WIFI Range

No obstacles 300m Max.

Camera Features

Day/Night

Color/ B&W (IR-CUT )

Image Config

Saturation/Brightness/Contrast /Sharpness, Mirror,  White Balance,

FLK(Flicker Control)

Corridor Pattern /

ROI /

Defog  Mode

YES

BLC

YES

HDR /

WDR

YES

Motion Detection

Support

Privacy  Masking 3 Rectangular Zone

Recording Mode

NVR/NAS/VMS/Web

Language

Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Farsi,

German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish,  Hebrew, Italian,Nederlands, Czech

Interface

Audio /

Alarm /

SD Card Slot /

RS485 /

General

Housing

Metal , IP66

Anti-cut Bracket

YES

IR Cut Filter

YES

Operation Temperature -20℃ ~ +50℃ RH95% Max

Storage Temperature -30℃ ~ +60℃ RH95% Max

Power Source

DC12V±10%, 500mA

Dimension 157(W) x 70(H) x 66(D)mm

Weight 650g

Model

NVR3604DEW

System

Main Processor

ARM Cortex A7 Quad-core Processor

Operating System

Embedded LINUX

Video

Input 4CH (2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720, etc)

Output 1 VGA, 1 HD

Audio

Input /

Output 1 Port RCA(Linear, 1kΩ)

Audio Bit Rate 64kbps

Audio Compression standard

G711u, G711a, G726

Alarm

Sensor Input

NO

Output

NO

Motion Detection 4 Channel, MD Zones: 396 (22 × 18)

Trigger Events

Recording, Email, FTP, Snapshot, Buzzer and Screen Tips, alarm output

Display

HD1

Resolution: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,  1024 × 768/60Hz

HD2 /

VGA

Resolution:1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,  1024 × 768/60Hz

Display Split 4CHxD1/1CHx1080P/1CHx3MP/1CHx4MP/1CHx5MP

Digital Zoom

YES

OSD

Camera Title, Time, Recording, Motion Detection

Recording

Video Compression

H.264/H.265/H.264+/H.265+

Resolution 5MP(2592×1944),4MP(2688×1520),3MP(2048×1536),1080P(1920×1080), 960P(1280x960),720P(1280×720),D1 (720×576/720×480)

Record Rate

• PAL :5MP@4×25fp,4MP@4x25fp,3MP@4×25fp,1080P@4×25fp, 960P@4×25fp,
• 720P@4×25fp, D1@4×25fpNTSC: 5MP@4×30fp,4MP@4×30fp,3MP@4×30fp,1080P@4×30fp, 960P@4×30fp,

 720P@4×30fp, D1@4×30fp

Record Mode

Manualimerotion Detection

Playback & Backup

Local Sync Playback 1CH 5MP@30fps, 1CH 4MP@30fps, 2CH 3M@30fps, 4CH 1080P@20fps,  4CH 960P@30fps, 4CH 720P@30fps

Decode Capability 4CH 1080P@20fps

Remote Sync Playback

YES

Search Mode

ALL, Channel, Manual, Time, Date, Motion Detection

Playback Functions

Play, Pause, Stop,  Fast Play, Digital Zoom

Backup Mode

Network/USB(With usb hub)

Network

Interface 1 RJ45 10M/100M Adaptive Ethernet Interface

Incoming Bandwidth 28MB

Network Functions

TCP/CP, HTTP, UPnP, DNS, NTP, SMTP, PPPoE, DHCP, FTP, DDNS, RTP, RTSP,

RTCP, p2p

Onvif Version

Support Onvif 2.4

Web Browser

IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53)

CMS Software

Support  Windows 7/ Windows 8/Windows 10

Cloud Support(P2P)

Yes

Smart Phone iPhone, iPad, Android, Android Pad

POE /

WIFI

Support, WIFI Range: No Obstacles 300m Max.

Storage

Interface Type 1 SATA Hard Disk Interface (2.5"/3.5" SATA)

Capacity

Up to 8TB capacity eSATA /

General

Language

Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian,  Farisa,German, French, Portuguese, Turkic, Spanish, Italian, Hungarian,

Romanian, Korean, Dutch, Greek

USB Interface 1 USB 2.0 Interfaces

RS485 /

Power Supply

DC12V/2A

Working Environment -10~55℃/10~90%

Dimension(W×D×H) 260*215*43(mm)

Weight 2.0KG (without HDD)

Model NO.

WIFI2004PDA200

Package

NVR 1x NVR2004PDW

Camera 4 x LBH24A200W

Mouse 1xUSB 2.0 Mouse

Adaptor 1xDC12V4A for WIFI NVR, 4xDC12V0.5A for WIFI IP

Weight 6.8kg/SET

Camera Model

LBH24A200W

Image Sensor

IMX322

Main processor

S2L

Resolution 1080P

Effective Pixels 1920(H)*1080(V)

TV System

PAL/NTSC

Electronic Shutter Time

Auto: PAL 1/1-1/10000Sec; NTSC 1/1-1/10000Sec

S/N Ratio ≥52dB

Scanning System

Progressive

Video Output 1xHDMI/1xVGA

Lens

Focus Length 3.6mm

Focus Control

Fixed

Lens Type

Fixed

Pixels 2M Pixels

Night Vision

Infrared LED ￠5 (12µ) x 24PCS , (14µ x 18PCS Optional)

Infrared Distance 20M

IR Status

Under 10 Lux By CDS

IR Power On

CDS Auto Control

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

IPv4, HTTP, TCP/IP, FTP, NTP, RTSP, UDP, SMTP, DNS, DDNS

ONVIF

Support ONVIF 2.4

P2P

YES, Support QR Code

WIFI

WLAN bandwidth 16Mbps

Wireless range 100m

WIFI Antenna 2CH 5dB

WIFIconnection

WPA authentication access

Video Delay 0.3S(WithintheLan)

Main Stream 1280*720@30fps

Sub Stream 720*480@30fps

IEBrower

IE7-11, Google Chrome, Firefox

Smart Phone iPhone, iPad, Android, Android Pad

Camera Features

Day/Night

Color/ B&W (IR-CUT )

Compression

H.264/JPEG/AVI

Image Config

Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, BLC, FLK(Flicker Control)

Motion Detection

Support

Privacy Masking 3 Rectangular Zone

WDR

YES

Recording Mode

NVR/NAS/CMS/Web

Language

Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Farsi, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian

General

Housing

Metal , IP66

Bracket

YES

IR Cut Filter

YES

Operation Temperature -10℃ ~ +50℃ RH95% Max

Storage Temperature -20℃ ~ +60℃ RH95% Max

Power Source

DC12V±10%, 500mA

Dimension 157(W) x 70(H) x 66(D)mm

Weight 650g

Model

NVR2004PDW

System

Main Processor

ARM Cortex A9 Processor(HI3520D)

Operating System

Embedded LINUX

Video

Input 4 Channel(4 channel wifi ipc), Support 1920×1080, 1280×960, 1280×720 ect...

Output 1 VGA, 1 HDMI

Alarm

Sensor Input

NO

Output

NO

Motion Detection

Support

Email Alarm

Support

Display

VGA

Resolution: 1280×720、1280×1024、1920×1080

HDMI

Resolution: 1280×720、1280×1024、1920×1080

Display Split 4 Channel / 1Channel

Digital Zoom

YES

OSD

Camera title, Time, Video loss, Recording, Motion Detection

Recording

Video Compression

H.264

Resolution 1080P(1920×1080) / 960P(1280x960) / 720P(1280×720) / D1 (704×576/704×480)

Record Rate

PAL:1080P@100fps,960P@100fps,720P@100fps,D1@100fpsNTSC:1080P@120fps, 960P@120fps, 720P@120fps, D1@120fps

Record Mode

Manualimerotion Detection

Playback & Backup

Local Sync Playback 1x1080P

Remote Sync Playback

YES

Search Mode

ALL, Channel, Time, Date, Motion Detection

Playback Functions

Play, Pause, Stop, Fast play, Slow play

Backup Mode

USB Device/Network

Network

Interface 4CH RJ45 10M/100M Adaptive Ethernet Interface

Network Functions

HTTP, IPv4, TCP/IP, DNS,DHCP,NTP,DDNS

Onvif Version

Support Onvif 2.4

Web Browser

IE8-11, Firefox, Chrome (Under Windows System)

CMS Software

Support Windows XP / Windows Vista / Windows 7/ Windows 8

Cloud Support(P2P)

Yes

Smart Phone iPhone, iPad, Android, Android PAD

Hard Disk Driver

Interface Type 1SATAInterface

Capacity 2.5" / 3.5" SATA up to 6TB

General

Language

Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, FarisaGerman, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian,Nederlands,Greek

USB Interface 2USB2.0Interfaces

Power Supply

DC12V/4A

Working Environment -10~55℃/10~90%

Dimension(W×D×H) 215*215*53mm

Weight 2.0KG (without HDD)
